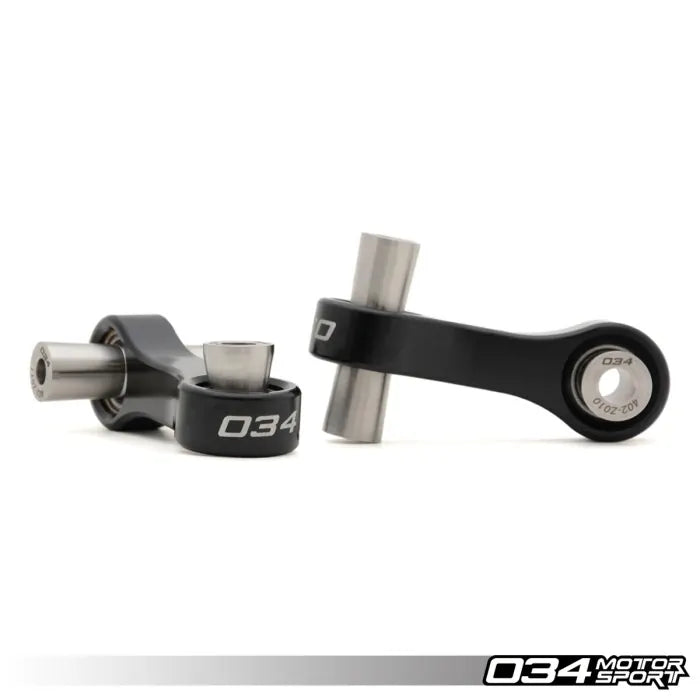

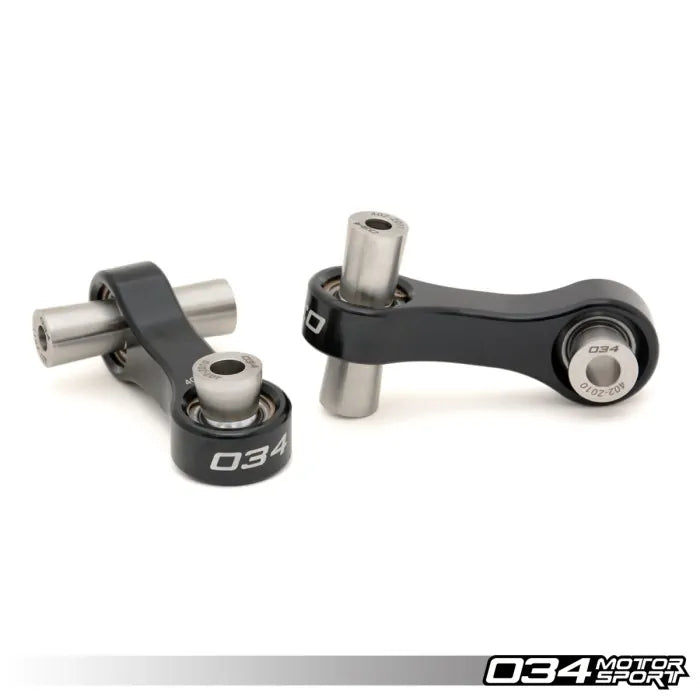

Replace your imprecise factory plastic/rubber rear sway bar end links on your Volkswagen & Audi MQB & MQB EVO vehicle with this performance engineered spherical set! 034Motorsports MQB Spherical Motorsport Rear Sway Bar End Links allow for uncompromised transfer of suspension movement to the sway bar, increasing the effectiveness of the rear sway bar and improving handling feel.
034Motorsports MQB Audi/Volkswagen Spherical Motorsport Rear Sway Bar End Links utilize Motorsport-Quality Teflon-Lined Aurora COM-8T Spherical Bearings, Billet Aluminum End Link Bodies, and Stainless Steel End Link Spacers to ensure optimum performance. These spherical end links are direct replacements for the stock parts, and designed to be fully serviceable and rebuildable.
This upgrade was thoroughly tested by 034Motorsport and independent Audi/Volkswagen enthusiasts before release on new MQB chassis vehicles. Installation is very simple, and is completely reversible.
Our test vehicle is also running 034Motorsport front and rear sway bars, and all 034Motorsport spherical Motorsport line of products.
Sold In Pairs
Click here for instalation instructions.
Features:
- CNC Machined 6061-T6 Aluminum End Link Bodies Anodized Black for Durability
- CNC Machined Stainless Steel End Links Spacers
- Motorsport Quality Aurora Spherical Bearings Featuring Self-Lubricating Teflon Race Lining
- Spherical Design Eliminates Deflection and Ensures Proper Articulation
- Direct Drop-In Replacement for Factory End Links
Functions:
- Improved Sway Bar Function
- More Direct Handling Feel

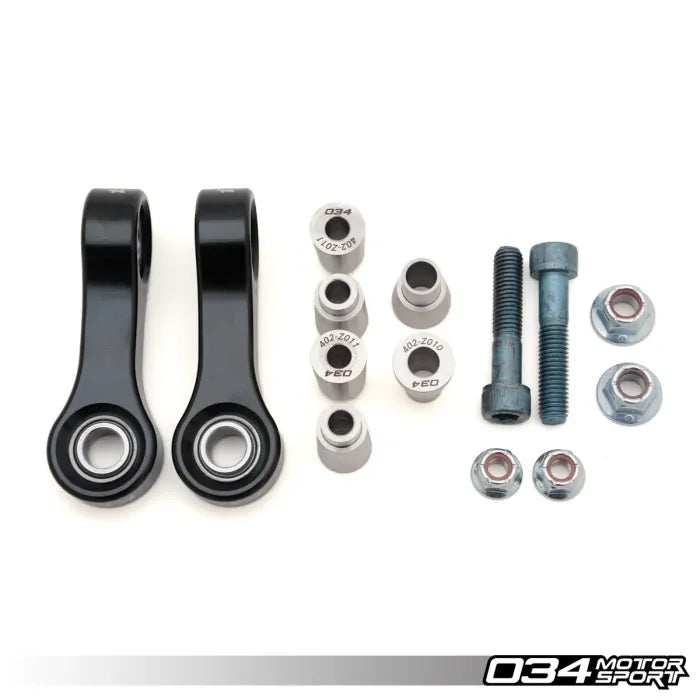

Whats included:
- 034Motorsport MQB Spherical Rear Sway Bar End Link Pair
- New Installation Hardware
Recommended alignment:
034Motorsport RS3 track use alignment specs; these specifications are optimal for a track driven car with a very loose handling attitude and lively rear end that drives towards oversteer. Caution should be used with these alignment specs as they can cause the car to over-rotate and spin, especially during throttle-lift conditions while turning:
- Front: (Tires: 265/35-18 Michelin Sport Cup 2)
- Camber: -3.0 degrees each side (034-601-1013 camber mounts)
- Caster: 7.1 degrees (not adjustable)
- Toe: 0.6mm (toe-in) each side
- Rear: (Tires: 245/40-18 Michelin Sport Cup 2)
- Camber: -1.5 degrees each side
- Toe: 0.8mm (toe-in) each side
