AIRTEC Motorsport Enlarged Turbo Inlet Elbow Upgrade â ATMSYGR08
AIRTEC Motorsport is proud to introduce our enlarged turbo inlet elbow upgrade, designed for track or fast road use. This direct replacement part offers significant increases in performance and response, thanks to its freer-flowing design and increased internal diameter.

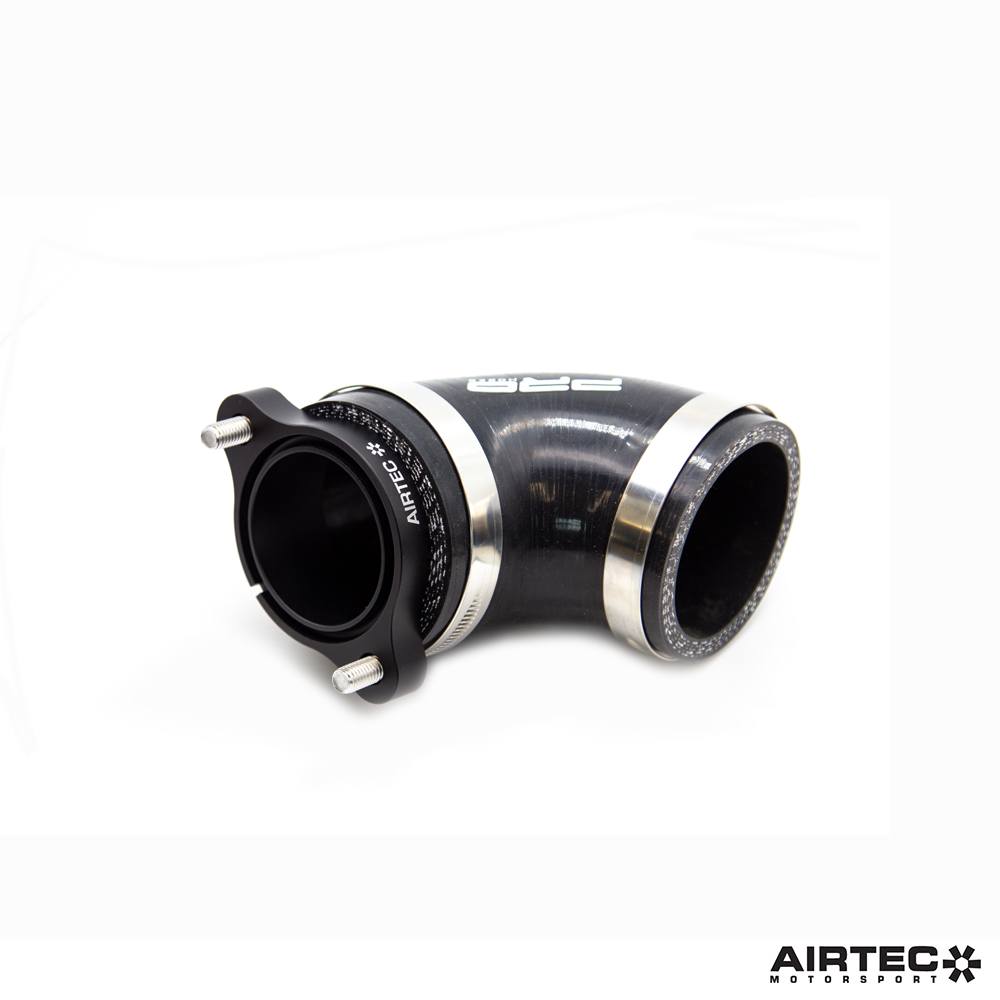

How it works: The original elbow on the Yaris GR gradually tapers down from the 63mm induction pipe to just 48.5mm as it enters the turbo, despite the turboâs inlet measuring 51mm in diameter. This creates a restriction within the intake side, limiting flow and throttle response. AIRTECâs direct replacement elbow features a CNC-machined flange with a correctly matched 51mm diameter, eliminating the stepped restriction. The high-quality silicone hose seamlessly tapers to meet the 63mm diameter intake, allowing maximum internal flow with nearly 10% increases.

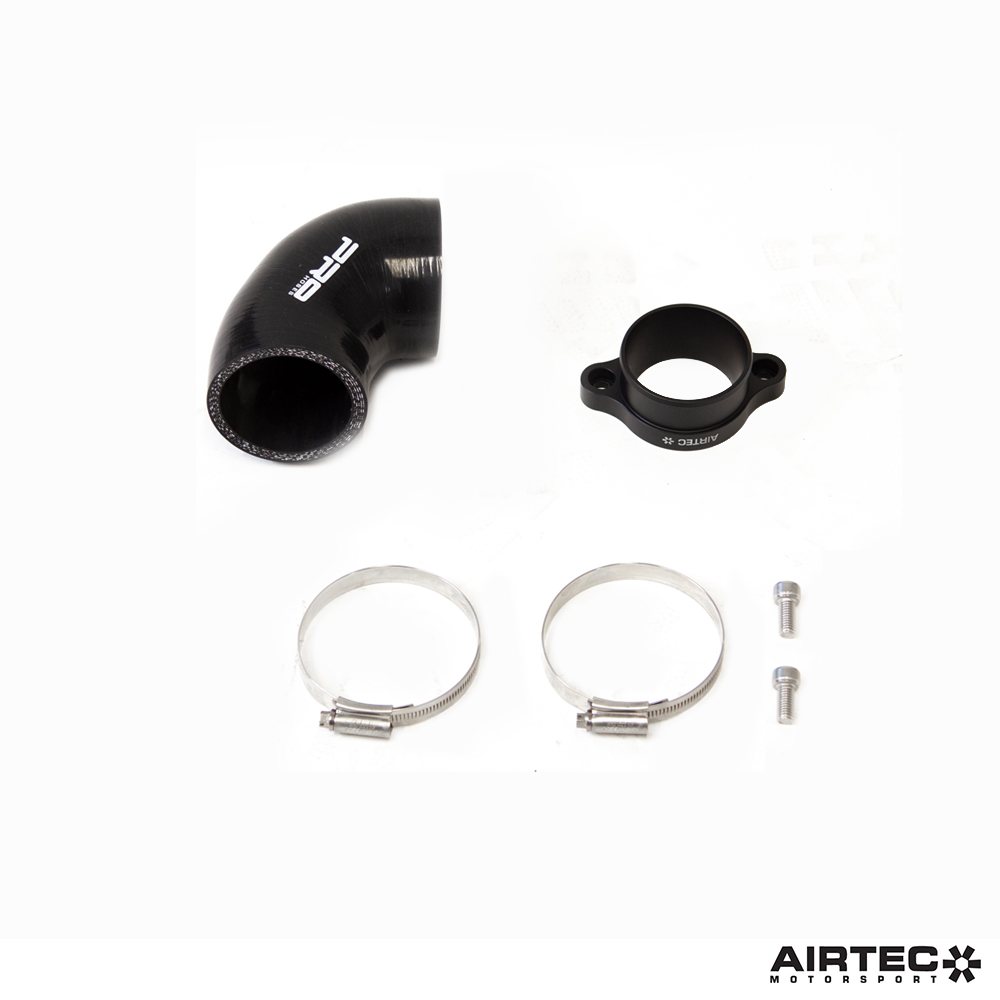

The AIRTEC Motorsport enlarged turbo inlet elbow upgrade includes all necessary fixtures and fittings, along with detailed instructions for easy installation. Its increased volume and improved design effectively reduce restriction and improve flow to the turbo, resulting in noticeable power and response gains.
Please note: This part is not compatible with a Turbosmart uprated blow-off valve.
Specification:
- Up to 10% increase in bore size
- Larger, freer-flowing design
- Improves airflow to the turbo
- Increases throttle response
- Direct replacement fitment
- Includes all fixtures and fittings
- Features detailed fitting guide
AIRTEC Part No: ATMSYGR08
Additional Information
| Brand | AIRTEC Motorsport |
|---|
