AIRTEC Motorsport Intercooler Upgrade for 2.0 TSI EA888 Gen 4 Engine – 2020 Onwards

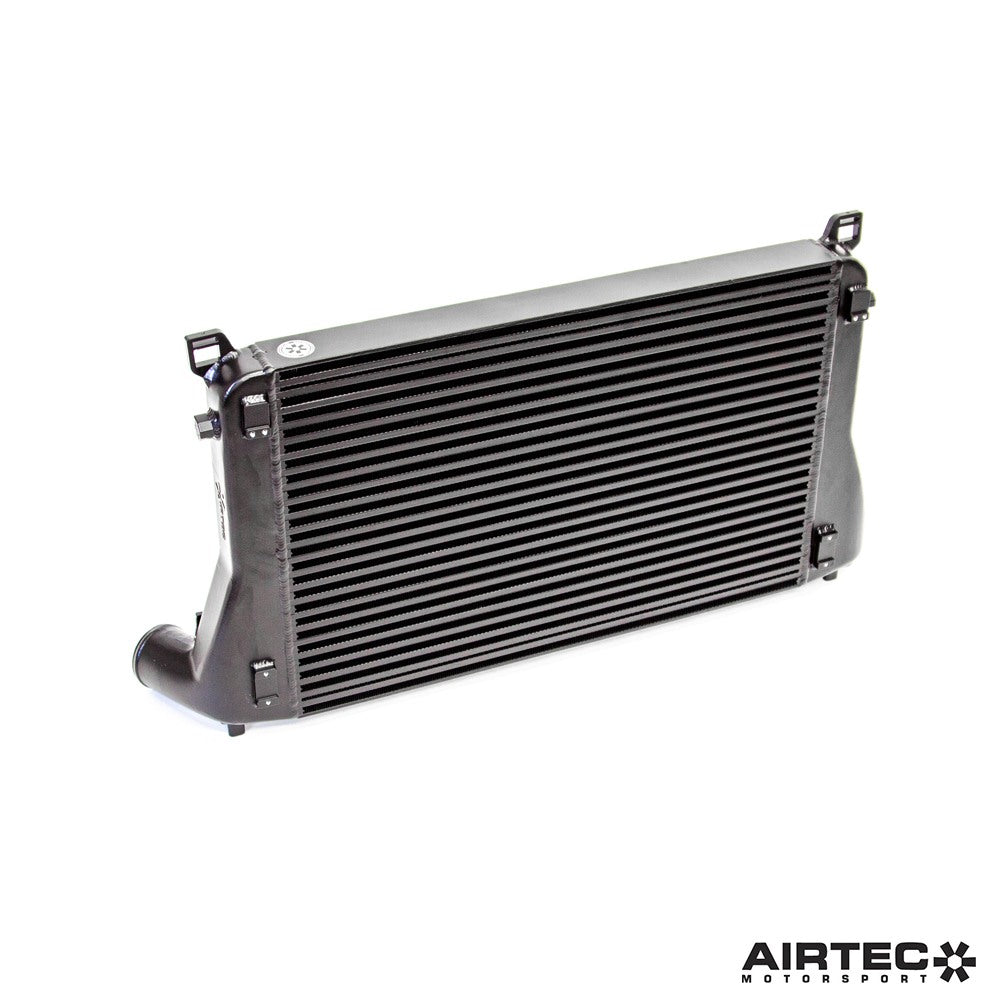

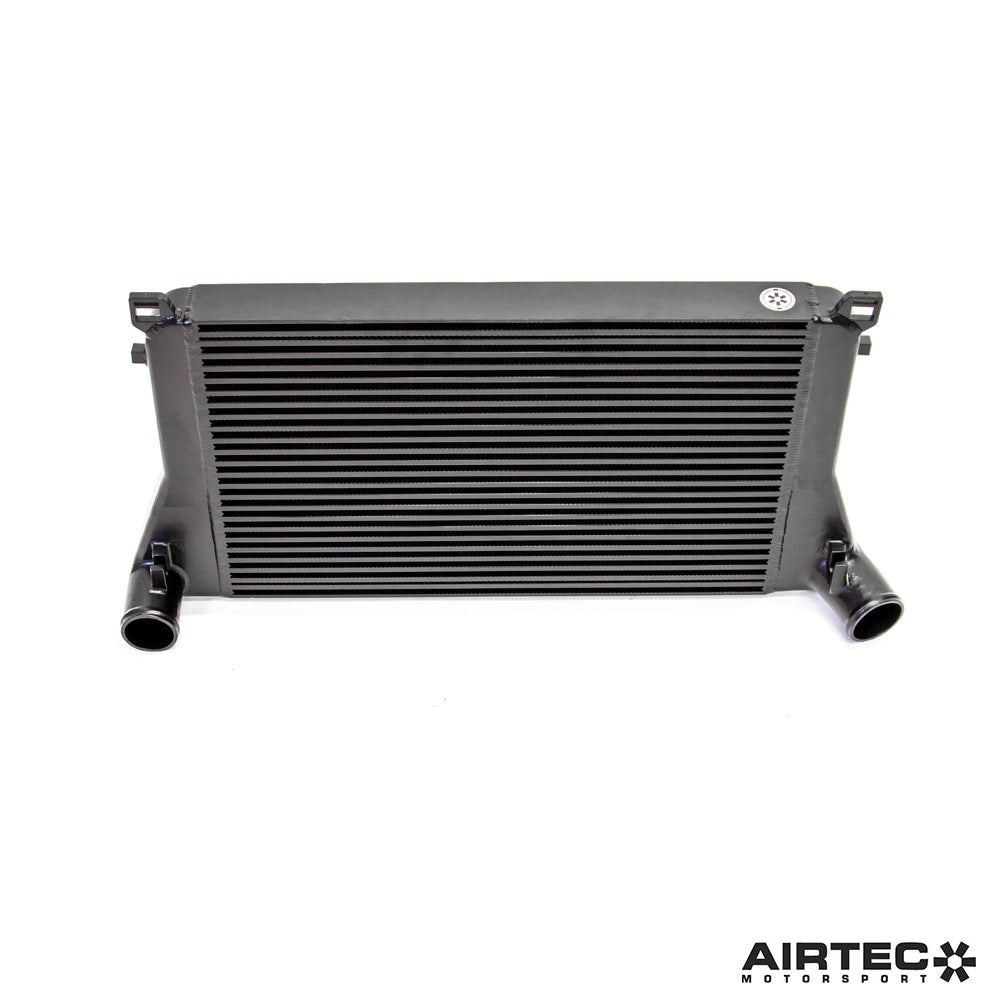

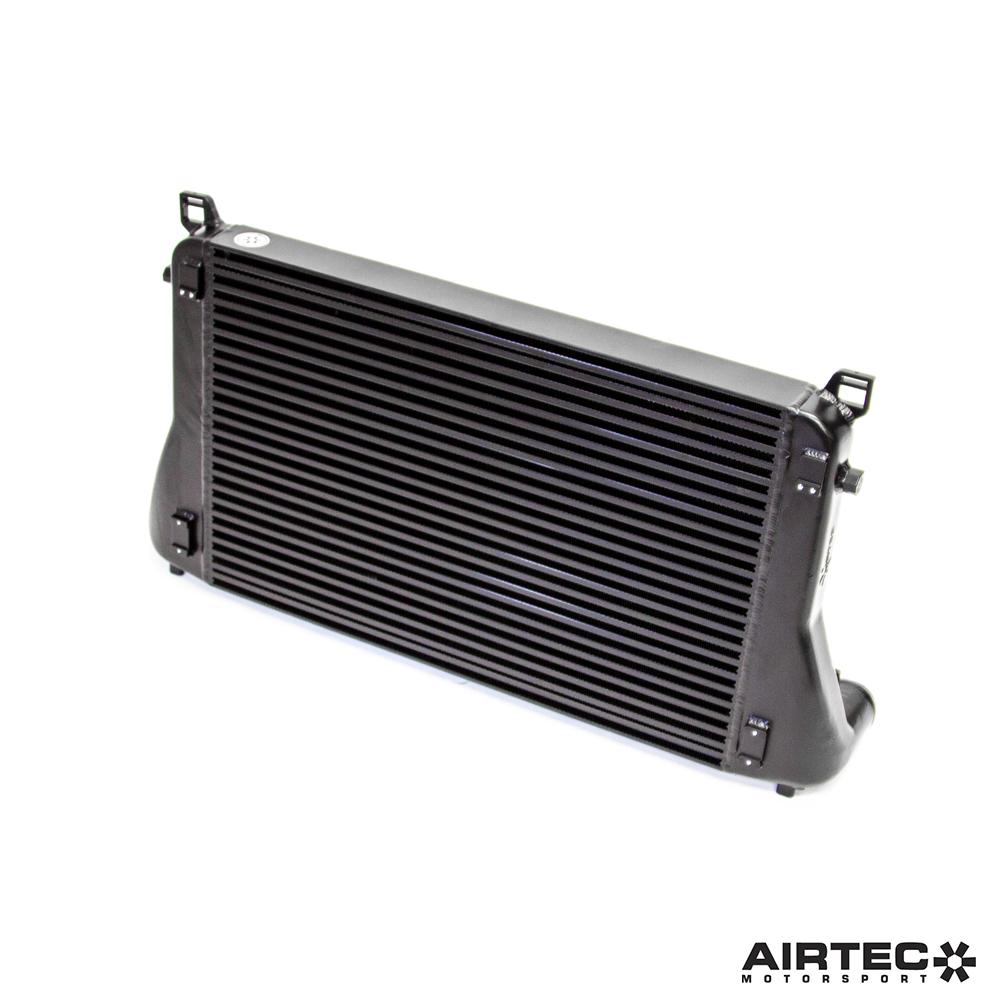

AIRTEC Motorsport Uprated Front Mount Intercooler Kit

Developed at AIRTEC HQ in the UK, we’re proud to introduce our high-performance front mount intercooler kit designed for EA888 Gen 4 platform owners seeking superior cooling efficiency, power, and performance for both track and fast road use.

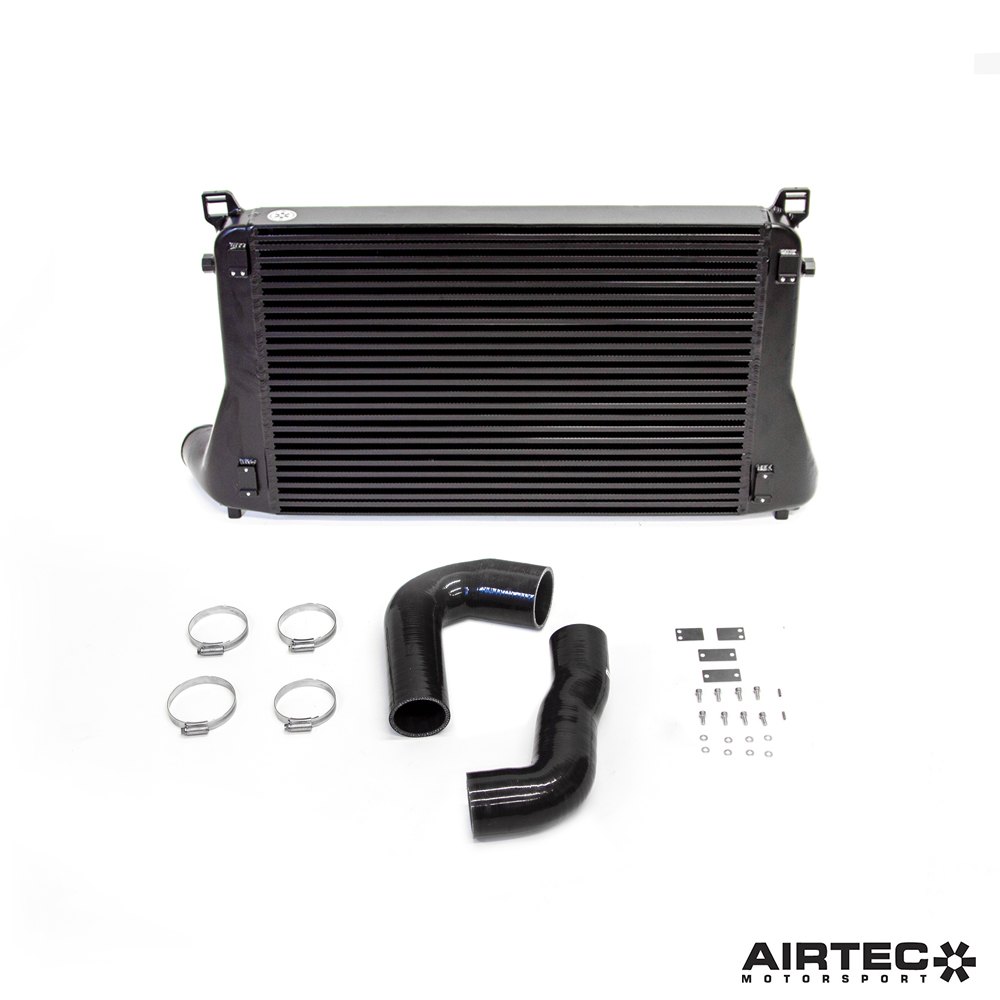

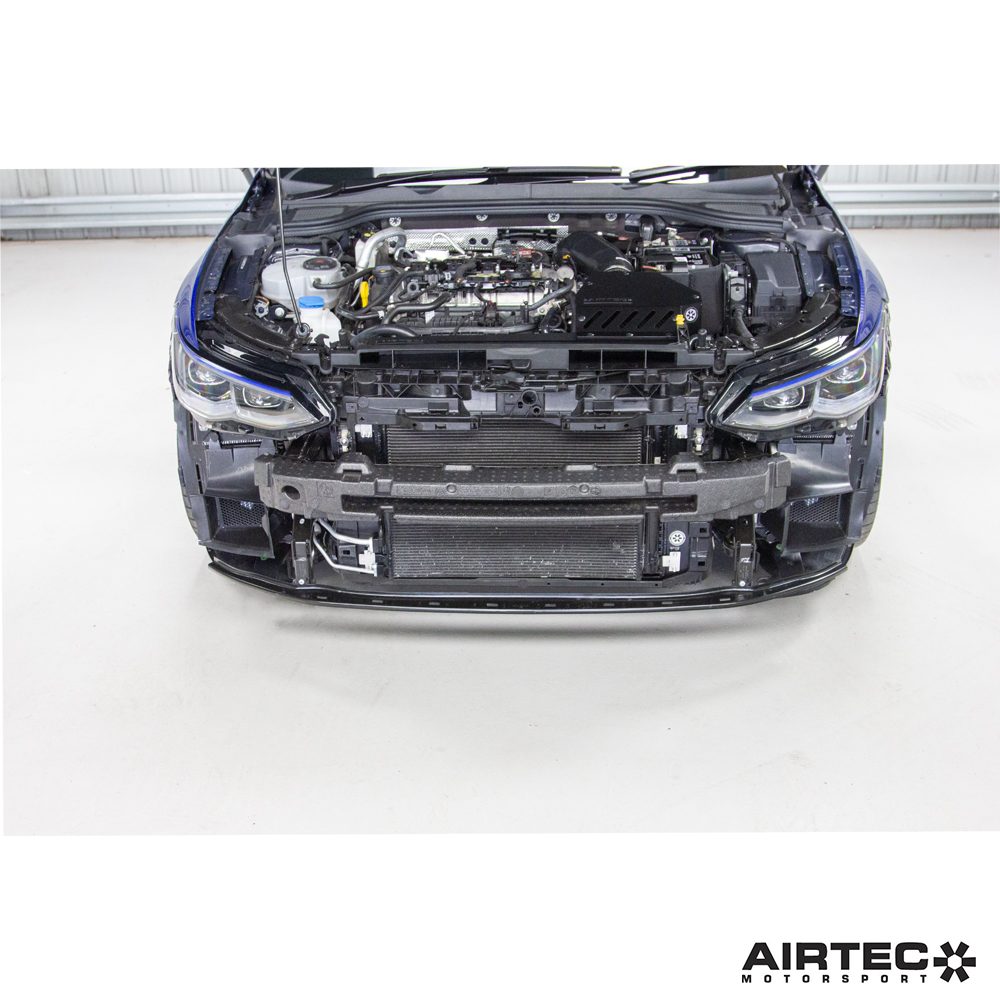

The kit features a high-quality powder coated black finish and includes new Pro Hoses silicone boost pipes. It is a direct replacement for the original intercooler and comes with all necessary fixtures, fittings, and detailed fitting instructions.

The Design
Building on the success of our EA888 Gen 3 platform intercooler kit, which has been the go-to choice for big power builds over the past 7 years, we utilized our 16.4-litre capacity core from the Gen 3 platform and integrated it to better accommodate the air-con radiator. This resulted in an impressive 80% increase in overall capacity compared to the original intercooler, along with an increased frontal area to optimize airflow. The one-piece cast end tanks ensure efficient airflow in and out of the intercooler.

Benefits:
– Proven cooling efficiency increase
– Direct replacement for modified EA888 Gen 4 platform models
– High-quality powder coated black finish
– Includes new Pro Hoses silicone boost pipes
– Complete with fixtures, fittings, and detailed fitting instructions

TESTED
AmD Tuning dyno – Modified Golf R Mk7 Test Vehicle

Standard Intercooler AIRTEC Motorsport Intercooler
Power
336.1bhp – 350.9 lb ft of torque 371.8bhp – 352.9 lb ft of torque

Temperatures
Run 1
IN – 115 degrees IN – 116 degrees
OUT – 44 degrees OUT – 18 degrees

Run 2
IN – 117 degrees IN – 117 degrees
OUT – 48 degrees OUT – 20 degrees

All research, design, and development were carried out at AIRTEC HQ in the UK by our team of fabricators and engineers. Our comprehensive development and testing program included extensive UK track days and multiple trips to the Nürburgring. We ensure the highest quality and performance by subjecting our products to rigorous testing.

Dimensions
OEM intercooler AIRTEC Motorsport intercooler
Width: 619mm Width: 620mm
Height: 409mm Height: 420mm
Depth: 36mm Depth: 63mm
Capacity: 9.1 litres Capacity: 16.4 litres
Front area: 25,320cm² Front area: 26,000cm²

Fitment
– 2021 onwards – VW Mk8 Golf R 2.0T
– 2021 onwards – VW Mk8 GTI 2.0T
– 2021 onwards – Audi 8Y A3
– 2021 onwards – Audi 8Y S3

Features
– Specifically designed for the EA888 Gen 4 platform
– Tried and tested core design
– 80% increase in overall capacity compared to the original
– Increased frontal area for improved airflow
– Enhanced cooling ability
– High-flow, one-piece cast end tanks
– Includes Pro Hoses silicone boost pipes
– Powder coated black finish
– Includes fittings and fixtures
– Detailed fitting guide included

AIRTEC Part No: ATINTVAG45
