With the manifold glowing...the boost never varies Joe Signorelli

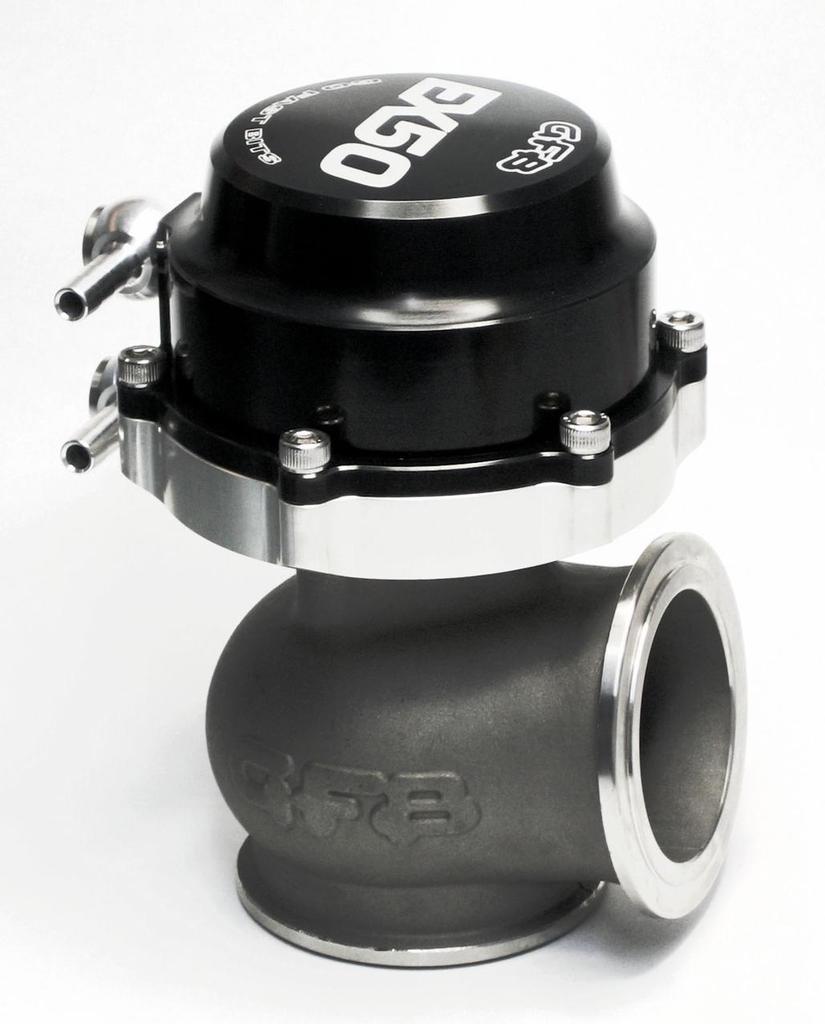

Designed to cope with the brutal conditions of extreme exhaust temperatures, the EX50 features not only a huge flow capacity, but also a compact size that is unmatched by competitors for a 50mm wastegate.

• Supplied with a 13psi spring
• 7psi and 9psi springs also available that can be ganged together with the supplied 13psi spring in various combinations to allow boost pressures of 7, 9, 13, 16, 20, 22 and 29psi.
• Body, valve and seat are made from high-temp stainless steel
• Actuator housing machined from billet 7075 aluminium much stronger & harder than 6061
• Flow tests show that for the same valve lift, the EX50 outflows its nearest competitor by 18%
• Internal valve shroud protects valve stem from excessive heat and prevents carbon-related sticking
• Top-hat style Nomex-reinforced silicone rolling diaphragm for longer valve travel
• 90 banjo-style boost hose connectors
• V-band clamp mounting system, supplied with 304 stainless weld-on adaptors (base flange is compatible with TiAl 44 flange when used with GFB adaptor)

Our main goal for the EX50 was to create a wastegate that had a very large flow capacity in a package that is physically as small as possible. This was achieved with the use of CAD design which allowed us to minimise the amount of unnecessary bulk (particularly on the actuator).

Good flow around a poppet-style valve depends on a smooth and generous bowl area into which the valve lifts. Many brands do not allow enough room around the valve head for good flow, instead relying on increasing the valve travel as a band-aid solution.

Joe Signorelli of Rotormaster and GAS Motorsport has done extensive testing on the EX50, on various high-powered circuit and drag engines (both piston and rotary), and most notably, on the brand-new 2JZ powered Celica.

Of the EX50 Joe says I couldnt be happier with the way it performs. Our circuit car comes into the pits after a race with the manifold glowing, and the boost never varies.

GFB offers a range of high-flowing external wastegates that are the most compact in their class for easy installation in tight locations, whilst offering the performance and reliability that are the hallmarks of all GFB products.

The EX range of wastegates feature an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures.
