P3 Audi A4/S4/RS4 B9 (2016-2019) V3 OBD2 Boost+ Gauge – 3P3AB9X
P3 V3 Gauge Features
-
Plug and Play Install – plugs directly into your OBD2 port (want to keep your OBD2 port open? (Hard Wired Harness Kit also available)
-

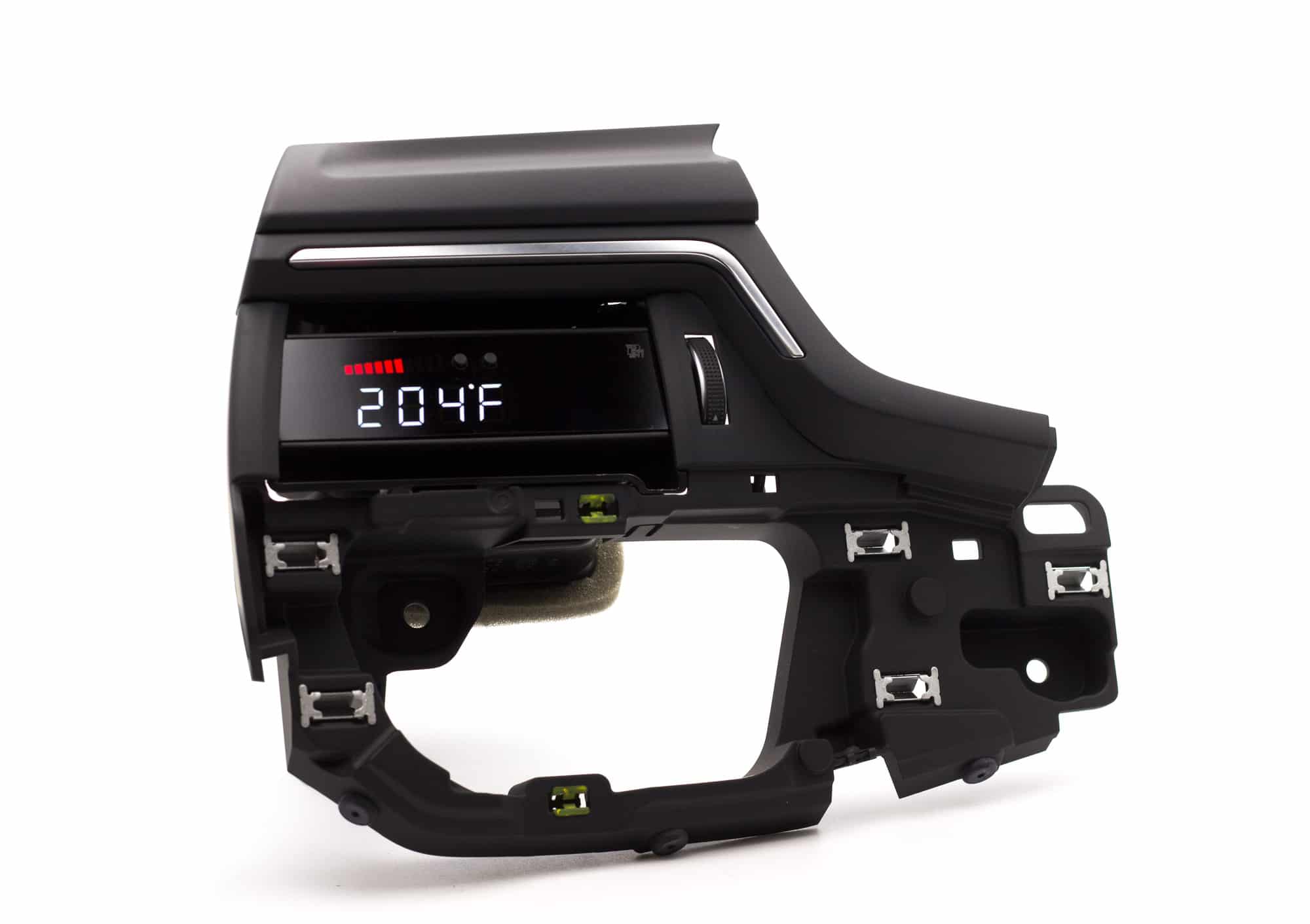

OEM Integration – installs in your vent for a sleek install while retaining air flow
-
Versatility – read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
-
Code Reading/Clearing – read and clear diagnostic trouble codes (DTCs) on the fly
-
Colour – Only available with red bars & white digits
-
Includes – Mounting Enclosure
P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)
-
Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
- Coolant temperature
-
Air/Fuel ratio (can be read in AFR or Lambda)
-
Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
- Intake air temperature
- Throttle angle
- Ignition timing
- Engine RPM
- Exhaust gas temperature
- Battery voltage
- Programmable shift light
-
Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
-
Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
-
Acceleration timers (0-60mph/0-100mph/60-130mph)
-
Braking timers (60-0mph/100-0mph)
Optional Add-Ons
-
P3 Analog Boost sensor – plugs directly into gauge harness, no wiring required)
-
Boost tubing kit – Approx. 5′ of 5/32″ O.D. flexible plastic boost tubing with vacuum “T” and 3 sections of 5/32″ I.D. vaccum hose. Includes 3 zip ties
-
P3 ESVA (Ethanol Sensor Voltage Adaptor) allows your gauge to read ethanol content and fuel temperature directly from the common Continental/GM flex fuel sensor. *Ethanol sensor NOT included
-
Trim Removal Kit – this tool kit will help you remove your vent and interior trim while minimizing the chance of scratching or damaging your trim
-
OBD2 Splitter – attach multiple devices to your OBD2 port. *some devices will not function while another device is attached to the OBD2 port
You can buy with confidence with a 1 year warranty on manufacturing faults. Beyond that, P3 offer repair services that will get you taken care of in the most efficient way possible.
