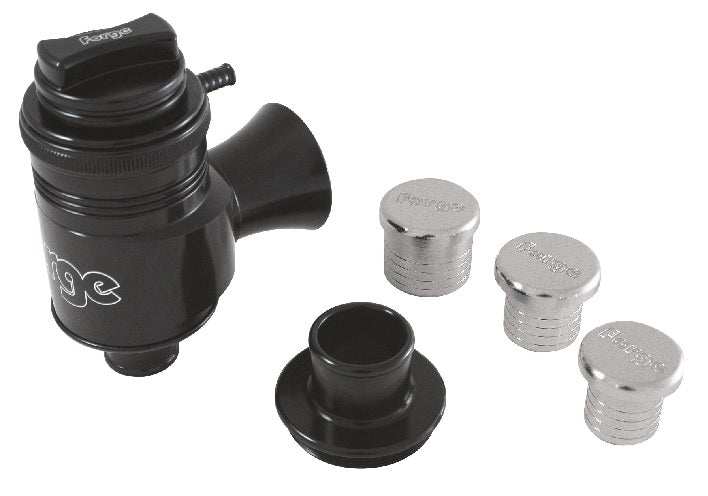

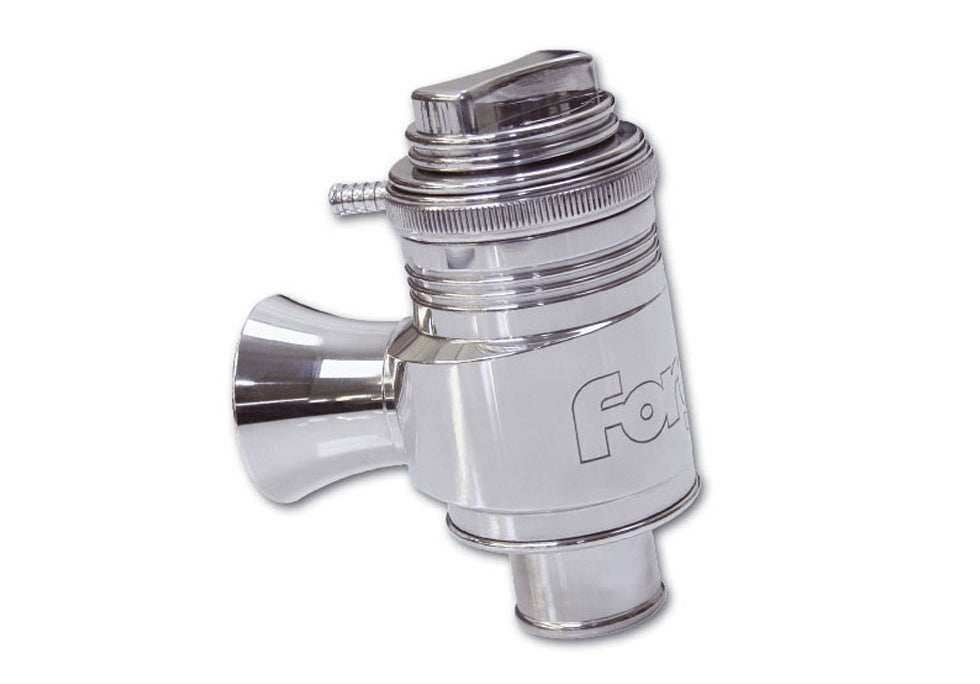

Type RS Valve - Atmospheric

We recommend  servicing  your valve every 3 years, or 20, 000 miles, whichever comes sooner The Forge RS valve has been specifically designed and engineered  to offer extreme flow rate capability, where other valves are just not up to it. For fine tuning there is a variable spring preload incorporated and a ratchet type top adjuster that will allow for the positive and precise adjustment that your driving style demands. With a choice of inlet and outlet connections the RS valve can be matched to your engine perfectly. This valve incorporates a unique conical, progressive rate spring that can allow for the retention of boost pressure from 7 to 22 PSI depending on the individual user's application and level of adjustment. If you are intending on running over 22psi then you will need the uprated spring which is included with the kit.  This unique spring design will also allow for unrestricted piston travel and flow volume regardless of the amount of pre-load adjustment added to the spring. Other manufacturers valves using cylindrical springs with adjustable pre-load often experience restricted piston travel and flow volume within the normal range of valve adjustment. Please note: When configured as a Dual- Piston Atmospheric Valve;   All Forge Motorsport Dual- Piston Atmospheric Valves have been designed and built with the intent of venting 100% of the residual charge air remaining in your forced induction system to the atmosphere at throttle lift. While we have incorporated many elements into the design of the Dual-Piston valves to aid in their compatibility with mass air-flow sensor equipped vehicles, we cannot always guarantee that each individual’ s application will be compatible with a valve that vents the charge air into the atmosphere. Please specify valve finish and hose connector diameter
