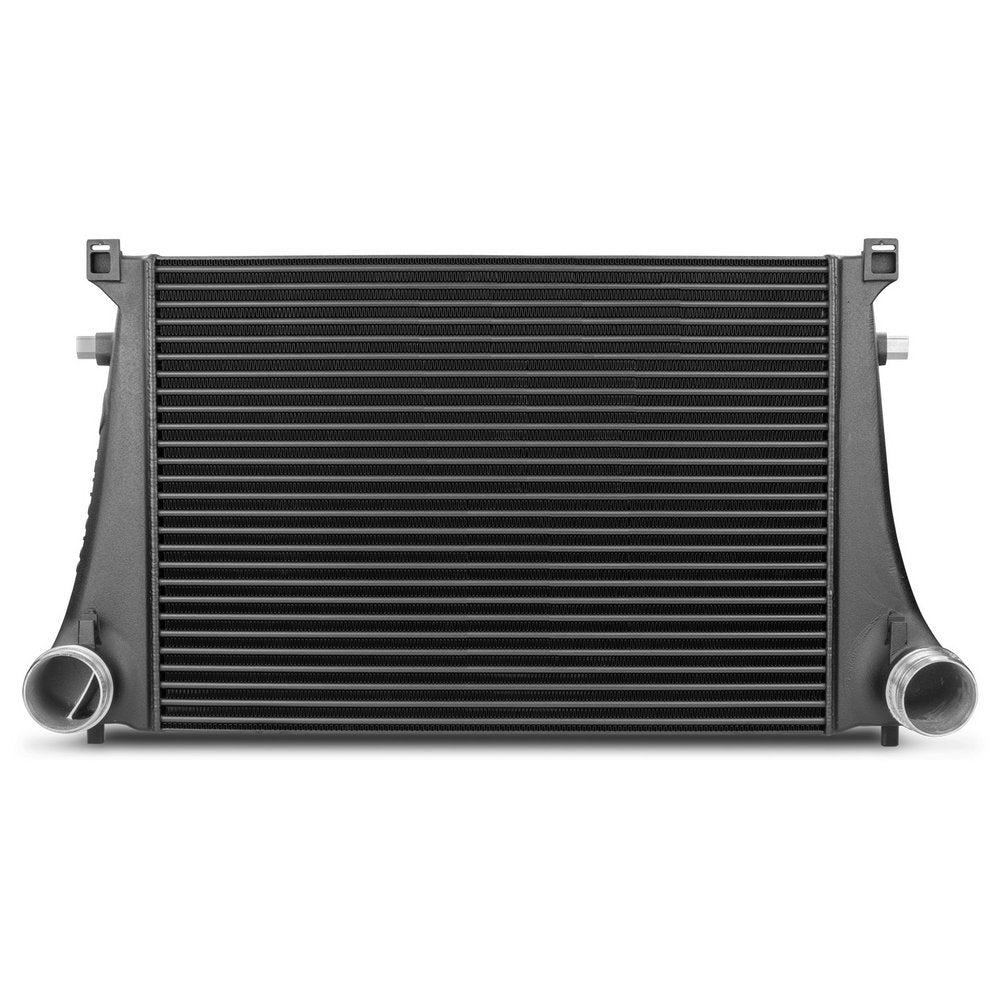

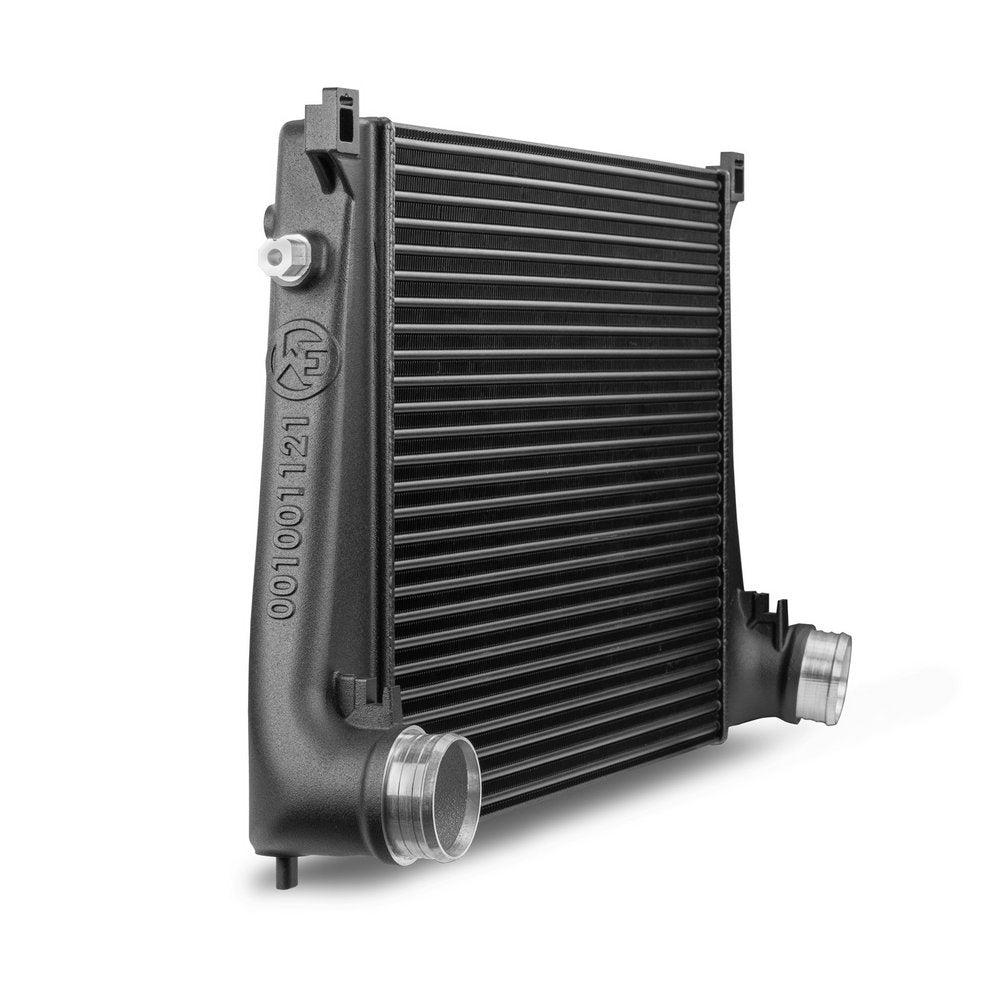

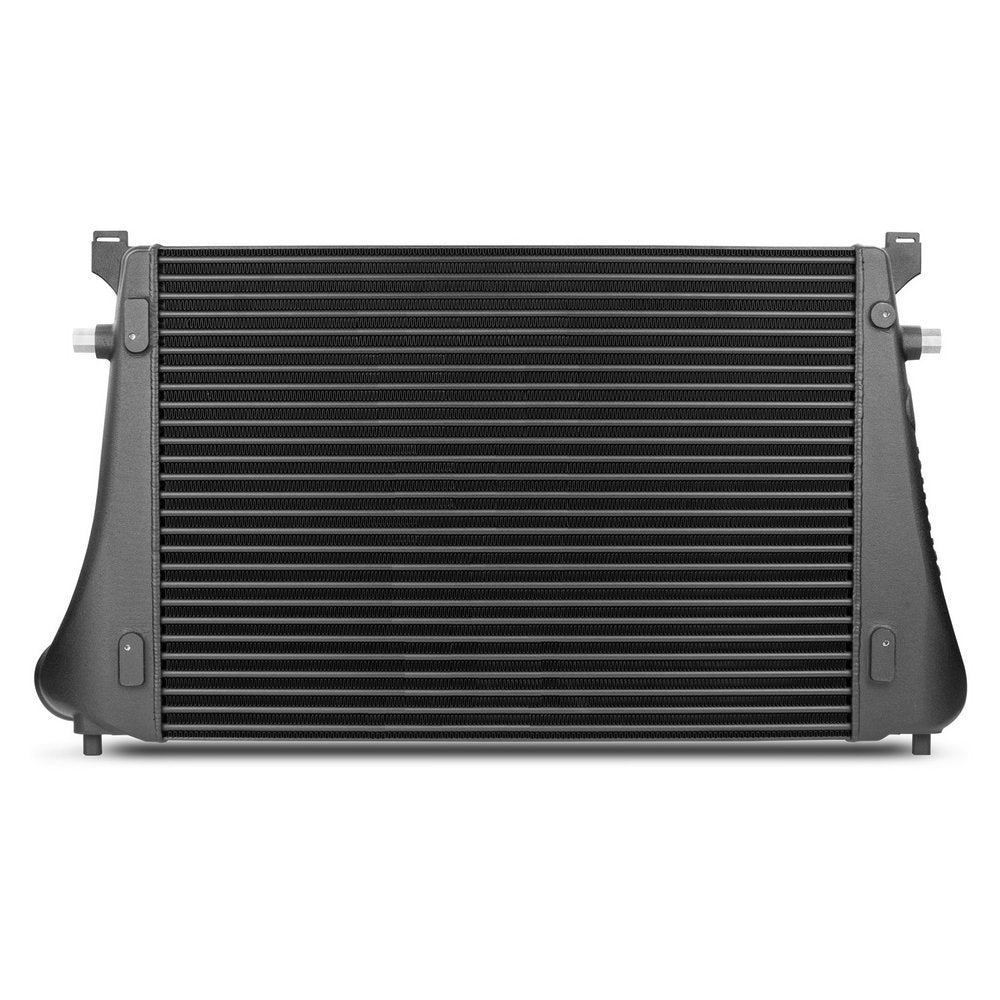

Wagner Tuning VAG MQB (EA888 Gen.4) Intercooler Kit
Introducing the Wagner Tuning Competition intercooler, the ideal solution to unlock the full potential of your vehicle and experience an exceptional driving experience. With impressive intercooler core dimensions of 620mm x 440mm x 65mm and an external charge air volume of 17.7 litres (compared to OEMs 9 litres), this high-performance intercooler ensures optimal cooling of the supercharged air.

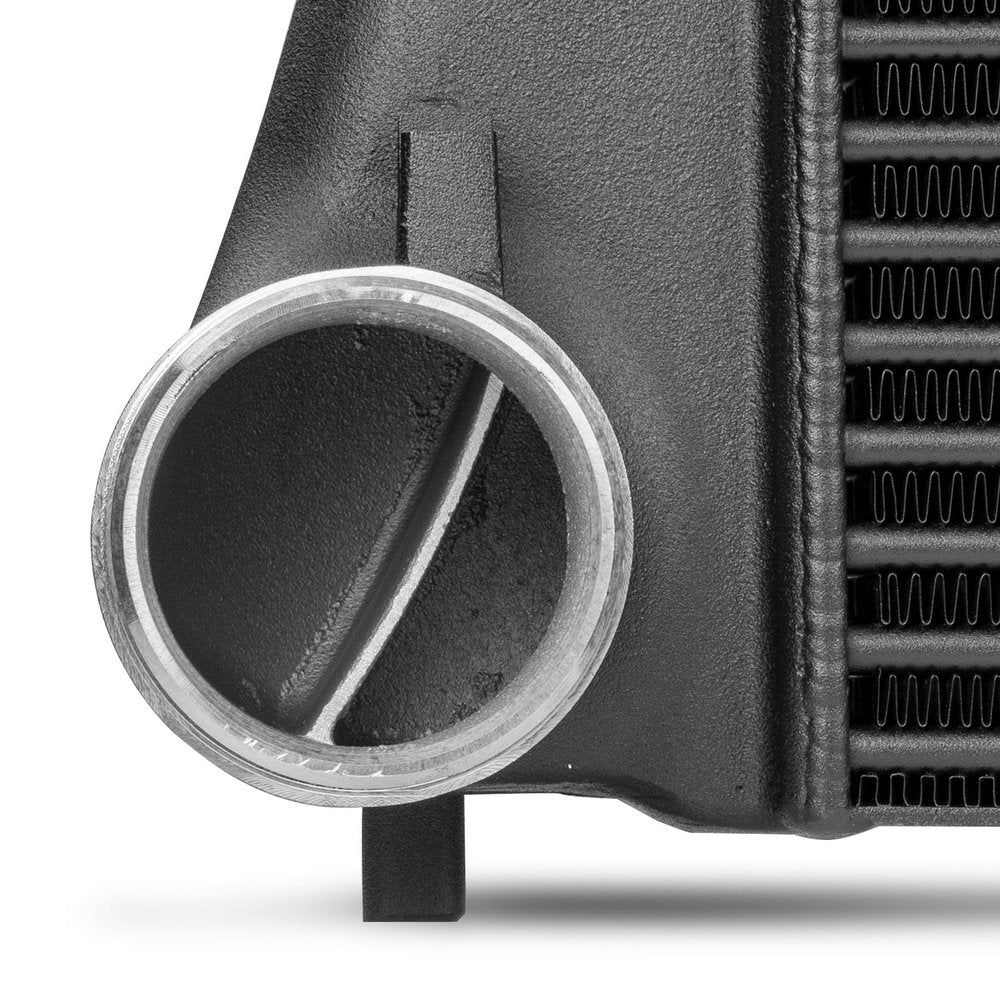

Our newly developed Competition high-performance core (Tube Fine) not only provides outstanding cooling performance but also ensures sufficient airflow for adjacent components such as the water cooler. Despite its high performance, the intercooler remains lightweight, weighing just 9.2 kg in total. The cast aluminium end boxes have been optimised using CAD technology and CFD simulations to achieve optimum internal airflow. An integrated air guide in the end box ensures even filling of the Competition high-performance intercooler core.
With an inlet and outlet diameter of 70 mm, this intercooler offers significantly lower backpressure compared to the standard intercooler. Additionally, all of our intercoolers feature a high-quality anti-corrosion coating, which not only ensures protection against environmental influences but also has superior heat conduction properties. This provides a lasting and optimal cooling effect with a noticeable increase in performance. Installation is straightforward by simply replacing the OEM intercooler.
Advantages of the Wagner Tuning Intercooler:
- Improved cooling performance
- 57% less back pressure
- Flow-optimised air routing
- Inlet and outlet diameter of 70 mm
- Less back pressure
- Plug & Play
Suitable for the following vehicles:
- Audi S3 8Y 2.0TFSI 228KW/310PS (from 10/2020 MKB: DNFB)
- Audi TT 8S 45TSI 180kW / 245PS (from 10/2020 MKB: DNPA)
- Audi TTS 8S 235KW/320PS (from 11/2020 MKB: DNFD)
- VW Golf VIII Type CD2.0 GTI 180kW / 245PS (from 08/2020 MKB: DNPA)
- VW Golf VIII Type CD2.0 GTI Clubsport 220KW/300PS (from 10/2020 MKB: DNFC)
- VW Golf VIII Type CD2.0 R 235KW/320PS (from 12/2020 MKB: DNFG)
- VW Passat B8 2.0TSI 206KW/280PS (from 11/2020 MKB: DNFE)
- VW Arteon (Typ 3H) 2.0TSI R 206-235KW / 280-320PS (from 12/2020 MKB: DNFE, DNFG)
- VW T-Roc R 221kW/300PS (from 10/2020 MKB: DNFC)
- Seat Leon IV KL Cupra TSI 4Drive 228KW/310PS (from 02/2021 MKB: DNFB)
- Cupra Formentor VZ 2.0TSI 180kW / 245PS (from 03/2021 MKB: DNPA)
- Cupra Formentor VZ 2.0TSI 228kW / 310hp (from 11/2020 MKB: DNFB)
- Skoda Octavia 2.0 TSI RS 180kW / 245PS (from 09/2020 MKB: DNPA)
- Skoda Superb 2.0TSI 206KW/280PS (from 11/2020 MKB: DNFE)

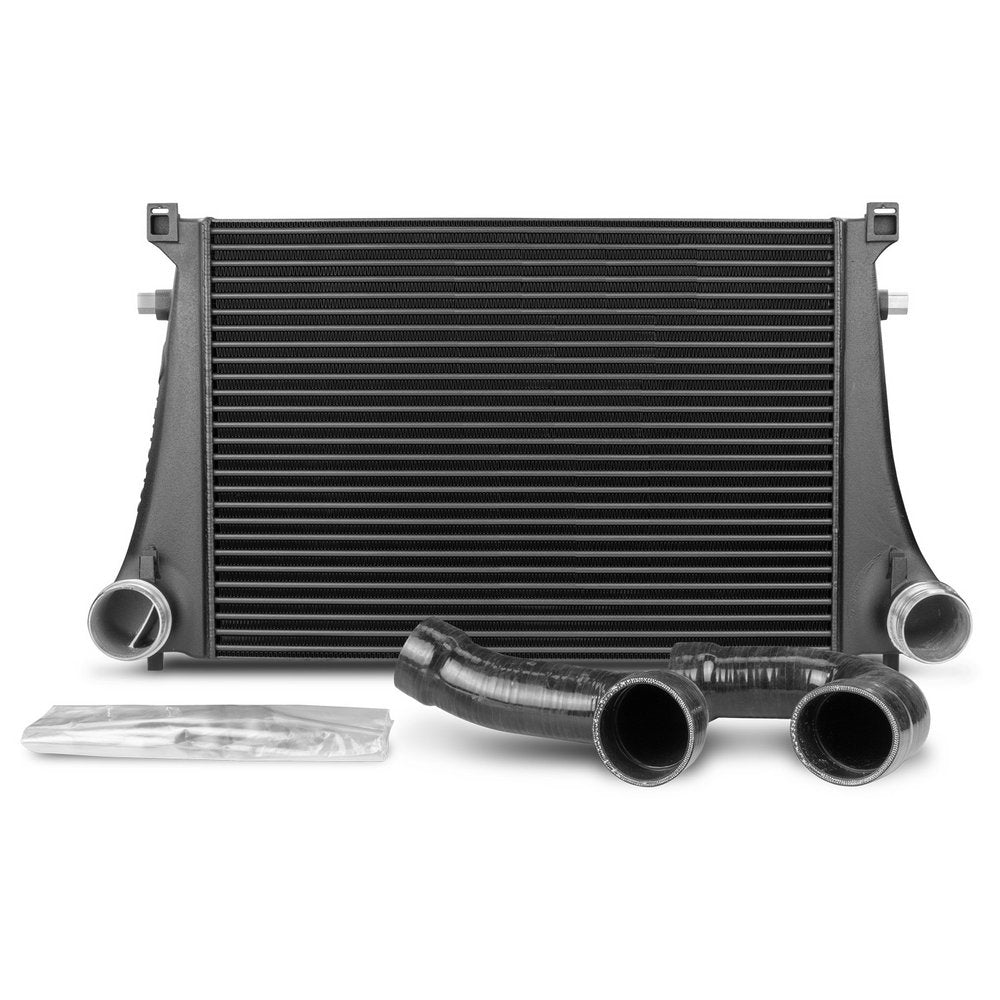

Kit Includes:
- 1 intercooler
- 2 silicone hoses
- 4 hose clamps
- 1 mounting material
- 1 assembly instruction
Part number: 200001178
